HO Scale Detail Parts for Locomotives, Rolling Stock, and Structures

Note: "D" behind the retail price indicates the item is only available direct from American Model Builders, Inc.

Last Updated July 27, 2023

Click Here to jump to detail parts for Branchline Pullman Cars
Click Here to jump to Universal Heavyweight Pullman Shades
Click Here to jump to detail parts for Walthers’ Heavyweight Passenger Cars


Kit No. 106 Horizontal Multi-tube Boiler (cast resin and white metal kit).
Assembled kit measures 2.25 inches x 1.625 inches. - MSRP...$34.95




Kit No. 107 250 HP Stationary Steam Engine (cast resin and white metal kit).
Assembled kit measures 2.25 inches x 1.5 inches. - MSRP...$36.95



Kit No. 165 Mine Trestling

This 100% laser-cut basswood kit is designed to either augment the parts provided in our Kit No. 164 Martinsburg Coal Mine, to fit your own mine structure, or as a stand-alone unit. The kit provides 12 linear inches of “tailings trestle”, which can be assembled in a straight line or curves to suit your scenery.
MSRP $17.95

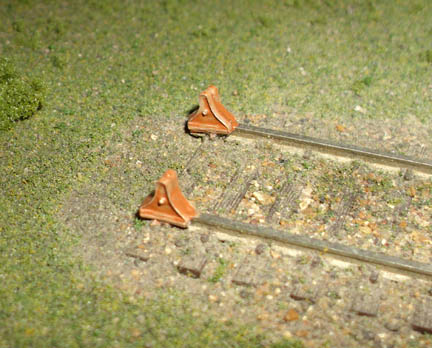

Kit No. 205 Wheel Stops (2 pair) MSRP $5.95



Kit No. 222 E and F Cab Unit Sun Shades
                  Laser-cut from heavy gray colored paper stock. Completes 4 cab units. MSRP $3.95



Kit No. 225 Door and Window Screen Material (3" x 6") - MSRP...$6.95

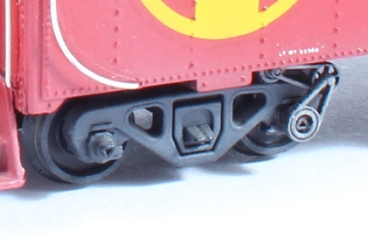

Kit No. 226 Caboose Axle Generator (laser-cut from clear acrylic) - MSRP...$6.95/2





Kit No. 227 Modernization Kit for Athearn ATSF Caboose (includes plain and gasketed windows, window blanks, battery box, and axle generator; all laser-cut from pre-masked clear acrylic) - MSRP...$14.95D



Kit No. 283 ATSF Style Diamond Shingles* - MSRP...$21.95/bag



*Please Note***With the exception of Part #283, Santa Fe Style Diamond Shingles, all packages of shingle strips contain 88 square inches of material which, when applied to roof and/or walls, will cover approximately 44 square inches. Part #283 contains 132 square inches of material which will cover approximately 66 square inches of roof and/or wall.  All Shingles are Laser-Cut with Peel & Stick Backing.

Kit No. 284 Hexagonal Shingle Strips* - MSRP...$14.95/bag



Kit No. 285 Tabbed Shingle Strips* - MSRP...$17.95/bag



Kit No. 286 Rolled Roofing Strips* - MSRP...$10.95/bag



Kit No. 310 Screen Doors/Windows for HO Kit #130...ACL Depot - MSRP...$4.95



Kit No. 311 Screen Doors/Windows for HO Kit #123...Corydon General Store & Post Office - MSRP...$4.95/set



Kit No. 312 Screen Doors/Windows for HO Kit #122...Dill’s Market - MSRP...$4.95/set






Kit No. 327 Loading Dock Set (2/package) - MSRP...$11.95
As featured in our Kit No. 117 Hitzeman's Feed Mill. One “L” shaped (overall length 5.75" including stairs) and one straight (5.125" long over stair). (Figure and feed mill not included).



Kit No. 331 Loading Dock - MSRP...$9.95
An extra-long freight dock as featured in our Kit No. 152 Big Four Freight House (Freight House not included). Dock is 9.25” long x 1.25” wide.

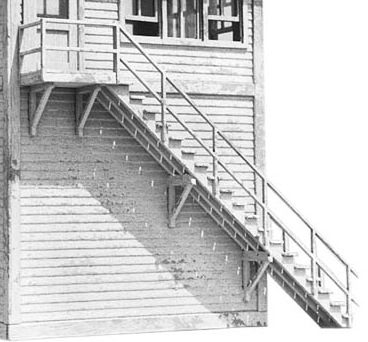

Kit No. 332 Stair Set - MSRP...$7.95/2
As featured in our Kit No. 702 Interlocking Tower. Includes two stair sets with support brackets. (Tower not included).




Kit No. 333 Material Bins - MSRP...15.95

Our laser-scribed and cut Material Bins are perfect for use in rail yards, along sidings, and at supply depots where coal and bulk aggregates such as gravel, stone, and sand are utilized or sold. Each unit is comprised of 3 bins fashioned from quality birch plywood and Peel & Stick assembly with pre-cut basswood posts. Kit includes two units each measuring 4.25 inches long x 1.25 inches deep x 0.75 inches high offering a total of six bins.




Kit No. 334 Wood Privacy Fence - MSRP...14.95

Our Wood Fence kit represents a standard scale 6-foot tall privacy fence that features our unique assembly method allowing realistic individual picket construction without the hassle of board-by-board construction. Kit includes four 30 scale foot long panels (120 scale linear feet total) with each fence section comprised of laser-cut birch plywood pickets and Peel & Stick stringers plus pre-cut basswood posts. Provisions are made in the instructions for joining fence sections, including at corners, as well as the construction of simple entry gates.



Kit No. 335 Shake Shingles
Laser-cut shingles out of textured brown paper with our Peel & Stick adhesive system. Each kit contains two 4.25" x 11" sheets plus two flashing strips which will cover approximately 44 square inches. MSRP $17.95

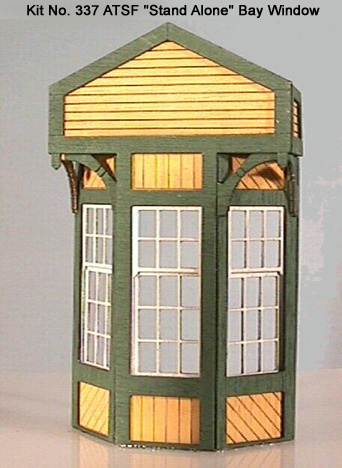

Kit No. 337 ATSF "Stand Alone" Bay Window
Follows Santa Fe standard depot design. We call this a "Stand Alone" Bay Window as its unique design and construction features allow it to be built as a separate component which can then be plugged into the rest of any structure the modeler is scratchbuilding. 100% laser-cut with Peel & Stick assembly. MSRP $11.95

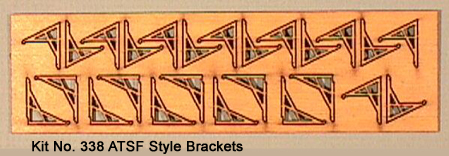

Kit No. 338 ATSF Style Brackets
based on standard Santa Fe depot designs. Each kit includes two laser-cut sheets of brackets for a total of 50 pieces in two styles: gable end or side mounted. MSRP $8.95

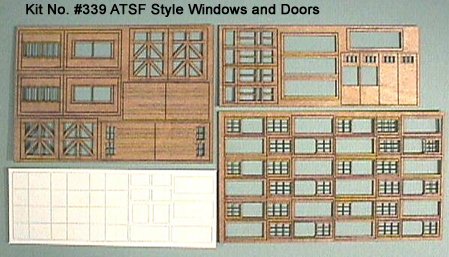

Kit No. 339 ATSF Style Windows and Doors
based on standard Santa Fe depot designs. The kit includes twelve windows, four personnel doors, two large baggage doors with transoms, two smaller baggage doors, and two baggage room windows. 100% laser-cut with Peel & Stick assembly. Window glazing is also included. MSRP $21.95



Interlocking Machines

Nothing makes an Interlocking Tower, such as our kit #185 PRR MO Tower or #702 Interlocking Tower stand out more on a layout then providing it with a detailed interior and our latest structure detailing kit does just that. Similar to the equipment once found in the actual MO Tower, our Six Lever and Thirteen Lever Interlocking Machines will add prototypical realism to any tower.

These 100% laser-cut kits include a floor-cutting template for installing the levers in any of our Tower kits, a new floor plate with laser-scribed details, and even a laser-cut paint mask (Thirteen Lever version only) along with color suggestions so the individual levers can be painted appropriately per railroad practice. Once assembled, the levers can be positioned to the modelers liking. The finished Thirteen Lever Interlocking Machine measures 1.25 inches long x 0.5 inches wide x 0.75 inches high and the Six Lever Interlocking Machine measures 0.5 inches long x 0.5 inches wide x 0.75 inches high with the lever bases extending below the floor level an additional 0.25 inches or less.

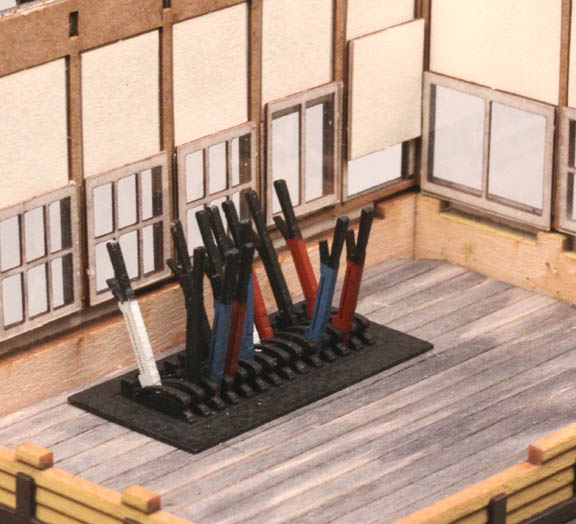

HO Kit No. 388 Thirteen Lever Interlocking Machine
Available now
MSRP ...$10.95



HO Kit No. 389 Six Lever Interlocking Machine
Available now
MSRP ...$8.95

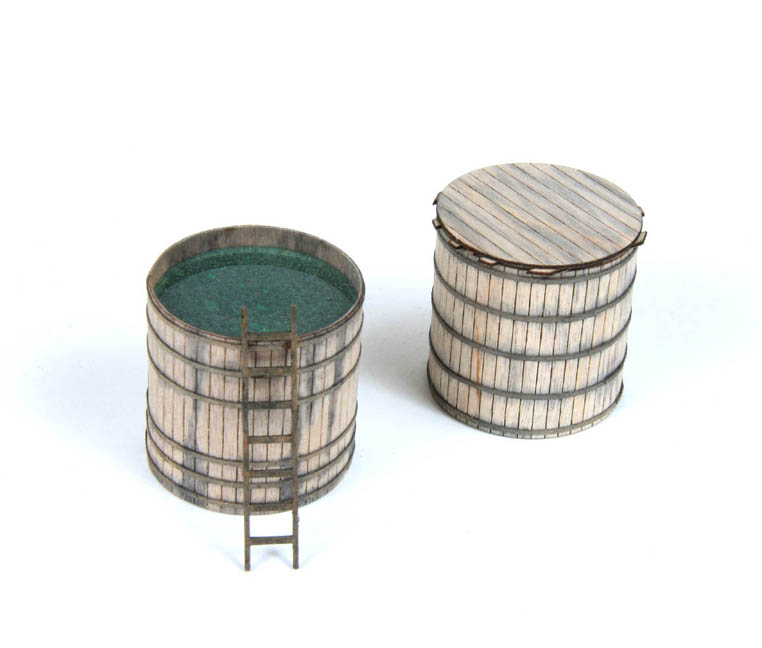

Real Wood Storage Vats

Includes four covered and one open Vat. Laser scribed and cut from Birch plyood and basswood. Open Vat includes simulated brine insert as found at Pickle Salting Stations. Each Vat measures 1.125" in diameter x 1" high (ladders shown not included).


HO Kit No. 390 Real Wood Storage Vats
Available now
MSRP ...$18.95

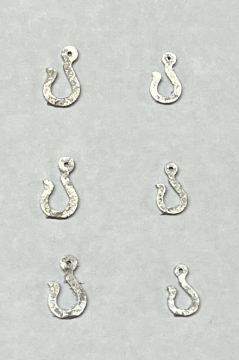

Kit No. 402 Hooks - MSRP...$6.95/6




Kit No. 404 Hydrants - MSRP...$6.95/6



Laser-cut Passenger Car Detail Parts


The following super detailing parts are now available for the Branchline Trains' Heavyweight Passenger Cars. See Windows Section for laser-cut window sets.
Click here for more details and photos!

Kit No. 354 Drip Rails and End Gates
        - Includes two different styles of end drip rails, side drip rails, and vestibule entry gates. Completes one coach. MSRP $6.95


Kit No. 365 Handgrab Locating and Drilling Jig for Branchline Trains' Single Window Coach
         - for use with Detail Associates #6601, #6602, and #6603 Grab Irons. MSRP $6.95


Kit No. 366 Window Shades for Branchline Trains' Single Window Coach
         - Green colored shades can be mixed and matched to equip up to four coaches. MSRP $8.95


Kit No. 369 Diaphragm Shims for Branchline Trains Heavyweights - Completes one car. MSRP $3.95



Kit No. 370 Adjustable Coupler Draw Bars for Branchline Trains Heavyweights - Completes two cars. MSRP $9.95D



Kit No. 371 Antimacassars/"Tidies" Decals for Branchline Trains Heavyweights - Completes one car. MSRP $3.95



Kit No. 377 Section Partition Dividers for Branchline Trains Heavyweights - Completes one car. MSRP $3.95



Kit No. 378 Partition Arches for Branchline Trains Heavyweights - Used to insure proper fit of bowed roofs. MSRP $4.95



Kit No. 379 Pantograph Safety Gates for Branchline Trains Heavyweights - Completes one car. MSRP $4.95



Kit No. 385 Reinforcement Dividers for Branchline Heavyweight Passenger Cars MSRP $13.95D
- Includes 6 dividers. Identical to parts in #378, but sized .005" narrower on both sides than the interior width of the car body. When glued to the interior, parts pull sides inward slightly so that bowed roof simply snaps into place and stays put.



Universal Heavyweight Pullman Shades Mix and match to complete up to four cars.

Kit No. 380 Green Universal Heavyweight Pullman Shades.  MSRP $8.95



Kit No. 381 Buff Universal Heavyweight Pullman Shades  MSRP $8.95



Kit No. 382 Gray Universal Heavyweight Pullman Shades  MSRP $8.95



The following super detailing parts are now available for the Walthers’ Heavyweight Passenger Cars. See Windows Section for laser-cut window kits.


Kit #964 Brake Beams for Walthers' PRR R50b Express Reefer and B60b Baggage Car
- Completes one pair of 2D-P5 type trucks.  MSRP $6.95



#965 Pantograph Safety Gates for Walthers’ Heavyweights - Completes two cars.  MSRP $4.95



Also see the Windows Section regarding laser-cut window kits for the Walthers’ Streamline Passenger Cars.
